Stare produs

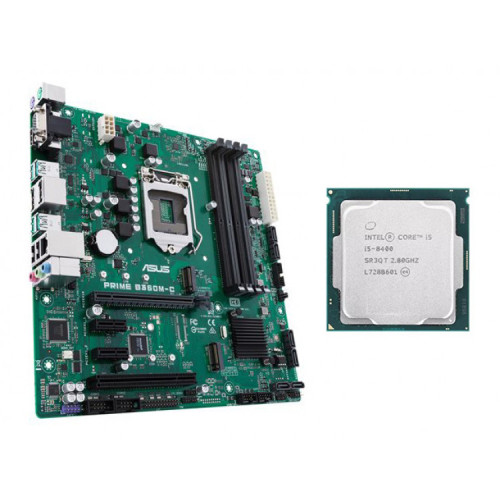

Placa de baza se livreaza cu shield si cooler.

Tip Componenta

Placi de Baza

Capacitate RAM

4x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Chipset

Intel B360

Cooler inclus

Da

Format/Dimensiune

mATX

Porturi

1x PS/2 keyboard port (purple) 1x PS/2 mouse port (green) 2x DisplayPort ports 1x HDMI port 1x D-Sub port 1x LAN (RJ-45) port 4x USB 3.1 Gen 2 (up to 10Gbps) ports (@Type A) 2x USB 2.0/1.1 ports (@Type A) 3x Audio jacks support 8-channel audio output* * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Procesor Inclus

Nu

Sloturi

1x USB 3.1 Gen 1 (up to 5Gbps) connector supports additional 2 USB 3.1 Gen 1 ports (19-pin) 2x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports 1x 4-pin CPU Fan connector 2x 4-pin Chassis Fan connectors 6x SATA 6.0Gb/s connectors 2x M.2 Socket 3 (for M Key) 1x Front panel audio connector (AAFP) 1x System panel connector 1x 24-pin EATX Power connector

Socket

1151v2

Tip RAM

DDR 4

Video OnBoard

Da *Necesita procesor cu tehnologia Intel HD Graphics

Frecventa (GHz)

2.80

Frecventa turbo procesor (GHz)

4.00

Numar nuclee

6

Procesoare suportate

Intel Socket 1151 pentru a 9-a / a 8-a Generație Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Suportă procesoare pe tehnologia Intel® 14 nm Suportă tehnologia Intel® Turbo Boost 2.0 * Tehnologia Intel® Turbo Boost 2.0 este dependentă de tipul de procesor. * Vizitaţi www.asus.com pentru o listă completă a procesoarelor suportate

Model placa de retea:

Intel® I219V Gigabit LAN
